Discrete Global Grid Systems with xdggs.DGGSIndex

See also

Learn more at the xdggs documentation page.

Highlights

xdggs provides a unified API for interacting with various Discrete Global Grid Systems (DGGS), like HEALPix or H3. It does so by parsing out grid metadata from the spatial coordinate containing the cell ids and persisting it on a “meta-index”, an index that wraps another index (most commonly a pandas index).

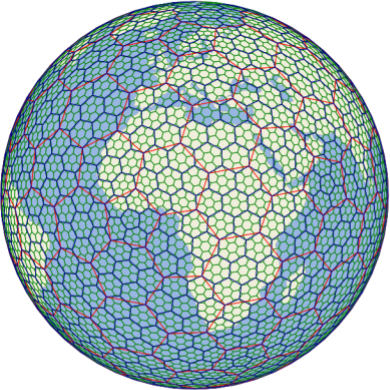

The H3 grid, a hexagonal DGGS designed for navigation on land.

Example

Here’s a dataset on a HEALPix grid:

import xdggs

ds = xdggs.tutorial.open_dataset("air_temperature", "healpix")
ds

<xarray.Dataset> Size: 10MB
Dimensions:   (time: 2920, cells: 434)
Coordinates:
  * time      (time) datetime64[ns] 23kB 2013-01-01 ... 2014-12-31T18:00:00
    lon       (cells) float64 3kB ...
    lat       (cells) float64 3kB ...
    cell_ids  (cells) int64 3kB ...
Dimensions without coordinates: cells
Data variables:
    air       (time, cells) float64 10MB ...
Attributes:
    Conventions:  COARDS
    title:        4x daily NMC reanalysis (1948)
    description:  Data is from NMC initialized reanalysis\n(4x/day).  These a...
    platform:     Model
    references:   http://www.esrl.noaa.gov/psd/data/gridded/data.ncep.reanaly...

xarray.Dataset

• Dimensions:
  • time: 2920
  • cells: 434
• Coordinates: (4)
  • time
    (time)
    datetime64[ns]
    2013-01-01 ... 2014-12-31T18:00:00

    standard_name :

    time

    long_name :

    Time

    array(['2013-01-01T00:00:00.000000000', '2013-01-01T06:00:00.000000000',
           '2013-01-01T12:00:00.000000000', ..., '2014-12-31T06:00:00.000000000',
           '2014-12-31T12:00:00.000000000', '2014-12-31T18:00:00.000000000'],
          shape=(2920,), dtype='datetime64[ns]')

  • lon
    (cells)
    float64
    ...

    [434 values with dtype=float64]

  • lat
    (cells)
    float64
    ...

    [434 values with dtype=float64]

  • cell_ids
    (cells)
    int64
    ...

    grid_name :

    healpix

    level :

    4

    indexing_scheme :

    nested

    [434 values with dtype=int64]

• Data variables: (1)
  • air
    (time, cells)
    float64
    ...

    long_name :

    4xDaily Air temperature at sigma level 995

    units :

    degK

    precision :

    2

    GRIB_id :

    11

    GRIB_name :

    TMP

    var_desc :

    Air temperature

    dataset :

    NMC Reanalysis

    level_desc :

    Surface

    statistic :

    Individual Obs

    parent_stat :

    Other

    actual_range :

    [185.16 322.1 ]

    [1267280 values with dtype=float64]

• Attributes: (5)

  Conventions :

  COARDS

  title :

  4x daily NMC reanalysis (1948)

  description :

  Data is from NMC initialized reanalysis (4x/day). These are the 0.9950 sigma level values.

  platform :

  Model

  references :

  http://www.esrl.noaa.gov/psd/data/gridded/data.ncep.reanalysis.html

with that, we can decode the metadata:

decoded = ds.dggs.decode()
decoded

<xarray.Dataset> Size: 10MB
Dimensions:   (time: 2920, cells: 434)
Coordinates:
  * time      (time) datetime64[ns] 23kB 2013-01-01 ... 2014-12-31T18:00:00
    lon       (cells) float64 3kB ...
    lat       (cells) float64 3kB ...
  * cell_ids  (cells) int64 3kB 525 526 527 529 530 ... 2043 2044 2045 2046 2047
Dimensions without coordinates: cells
Data variables:
    air       (time, cells) float64 10MB ...
Indexes:
    cell_ids  HealpixIndex(level=4, indexing_scheme=nested, kind=pandas)
Attributes:
    Conventions:  COARDS
    title:        4x daily NMC reanalysis (1948)
    description:  Data is from NMC initialized reanalysis\n(4x/day).  These a...
    platform:     Model
    references:   http://www.esrl.noaa.gov/psd/data/gridded/data.ncep.reanaly...

xarray.Dataset

• Dimensions:
  • time: 2920
  • cells: 434
• Coordinates: (4)
  • time
    (time)
    datetime64[ns]
    2013-01-01 ... 2014-12-31T18:00:00

    standard_name :

    time

    long_name :

    Time

    array(['2013-01-01T00:00:00.000000000', '2013-01-01T06:00:00.000000000',
           '2013-01-01T12:00:00.000000000', ..., '2014-12-31T06:00:00.000000000',
           '2014-12-31T12:00:00.000000000', '2014-12-31T18:00:00.000000000'],
          shape=(2920,), dtype='datetime64[ns]')

  • lon
    (cells)
    float64
    ...

    [434 values with dtype=float64]

  • lat
    (cells)
    float64
    ...

    [434 values with dtype=float64]

  • cell_ids
    (cells)
    int64
    525 526 527 529 ... 2045 2046 2047

    array([ 525,  526,  527, ..., 2045, 2046, 2047], shape=(434,))

• Data variables: (1)
  • air
    (time, cells)
    float64
    ...

    long_name :

    4xDaily Air temperature at sigma level 995

    units :

    degK

    precision :

    2

    GRIB_id :

    11

    GRIB_name :

    TMP

    var_desc :

    Air temperature

    dataset :

    NMC Reanalysis

    level_desc :

    Surface

    statistic :

    Individual Obs

    parent_stat :

    Other

    actual_range :

    [185.16 322.1 ]

    [1267280 values with dtype=float64]

• Indexes: (1)
  • cell_ids
    HealpixIndex(level=4, indexing_scheme=nested, kind=pandas)

    <xdggs.healpix.HealpixIndex object at 0x7e96c3575590>

• Attributes: (5)

  Conventions :

  COARDS

  title :

  4x daily NMC reanalysis (1948)

  description :

  Data is from NMC initialized reanalysis (4x/day). These are the 0.9950 sigma level values.

  platform :

  Model

  references :

  http://www.esrl.noaa.gov/psd/data/gridded/data.ncep.reanalysis.html

Note how the cell_ids coordinate is now associated with a HealpixIndex? This makes it harder to lose the parsed information, and thus having to parse it again.

We can also have a look at the parsed metadata:

decoded.dggs.grid_info

HealpixInfo(level=np.int64(4), ellipsoid=None, indexing_scheme='nested')

Here’s how the dataset looks:

decoded["air"].isel(time=0).dggs.explore(alpha=0.8)

In a future version of xdggs this may also support more operations, like alignment, selection using parent cell ids, or lazy coordinates for cell centers / cell boundaries.
